Understanding the Type C Circuit Breaker

1. What's the Big Deal with Circuit Breakers Anyway?

Let's face it, circuit breakers aren't exactly the life of the party. But they're the unsung heroes of our electrical systems, quietly preventing our homes from becoming crispy critters due to overloads and short circuits. Think of them as tiny, diligent security guards, always on the lookout for trouble. When things go sideways, they trip, cutting off the power and saving the day — and your appliances.

Now, there are different types of these electrical guardians, each with its own specific tripping characteristics. And that's where the Type C circuit breaker comes into play. So, why should you even consider one? Well, let's dive into the juicy details.

Imagine your home electrical system as a finely tuned orchestra. Each instrument (appliance) plays its part, drawing a certain amount of electricity. Sometimes, a rogue instrument (a power tool or appliance with a high inrush current) decides to go wild, demanding a sudden surge of power. This is where a Type C breaker shines, as it allows for these brief surges without tripping unnecessarily, which is where different types of breakers make all the difference.

It's all about understanding what kind of electrical load your circuits will be handling. Is it mainly lighting and resistive loads? Or are you planning on running heavy-duty equipment that requires a bit more "oomph" at startup? Choosing the right breaker can prevent frustrating nuisance tripping and ensure your electrical system runs smoothly.

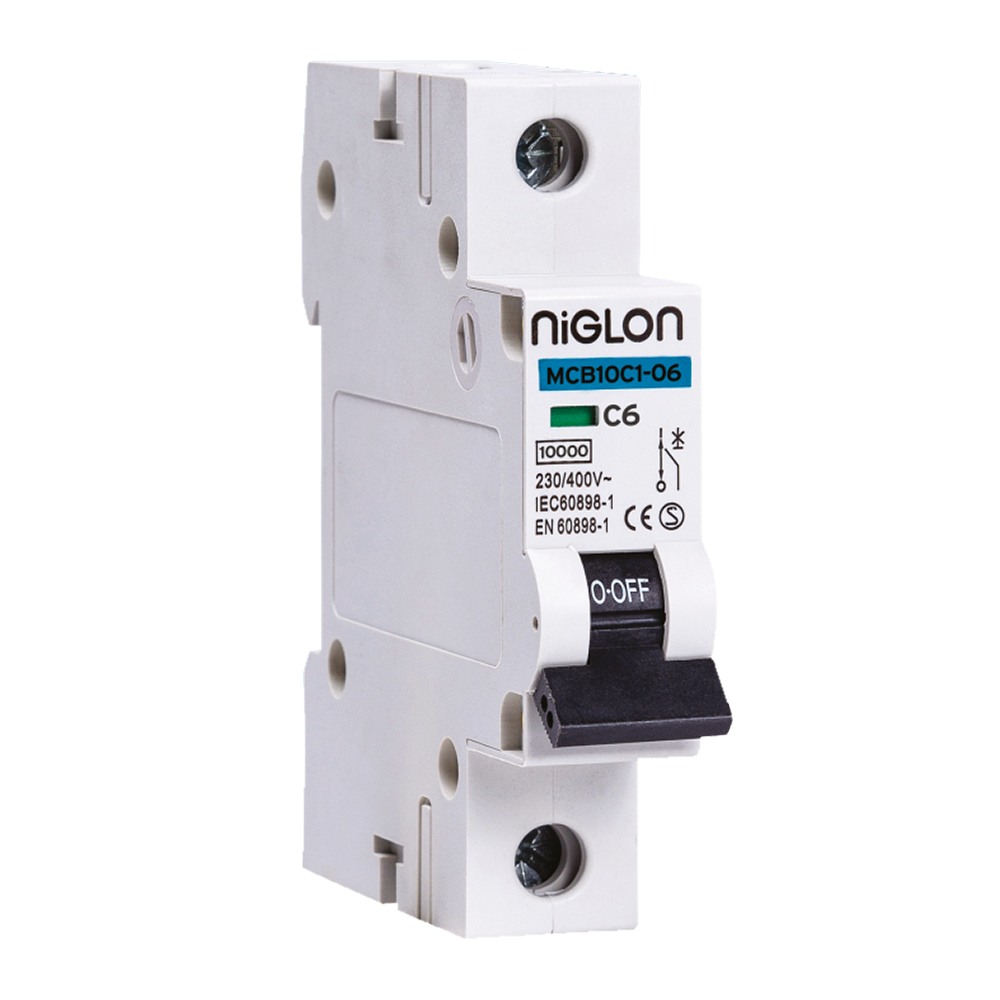

Miniature Type C Circuit Breakers Elevator Equipment

Delving into the Specifics of a Type C Breaker

2. What Makes a Type C Different?

Alright, so what exactly is a Type C circuit breaker? In a nutshell, it's designed to trip faster than a Type B breaker but slower than a Type D breaker. Think of it as the Goldilocks of circuit breakers; not too sensitive, not too tolerant, but just right for certain applications.

The key difference lies in their tripping curve. This curve dictates how much current, and for how long, the breaker will tolerate before tripping. Type C breakers are calibrated to trip between 5 and 10 times their rated current. This means a 10A Type C breaker will trip somewhere between 50A and 100A. This higher tolerance allows for those brief inrush currents we talked about earlier, which are common in inductive loads like motors and transformers.

Consider a small workshop with a drill press, a lathe, and maybe a small air compressor. These devices require a significant surge of current when they start up. A more sensitive breaker, like a Type B, might trip every time you fire up the compressor, leading to endless trips to the breaker box. A Type C breaker, on the other hand, is designed to handle these surges without interrupting your work flow. It's about having the right balance of protection and tolerance.

It is important to recognize though, that while Type C breakers are made to handle surges, they are not made to handle sustained overload. If your circuit is constantly running near it's maximum current, a Type C breaker will trip eventually. It's crucial to properly calculate the total load and ensure the circuit wiring is appropriately sized for the load and the breaker rating.

Types Of Circuit Breaker In Power System At David Desantis Blog

Ideal Scenarios

3. Finding the Right Fit for Your Needs

So, where do Type C circuit breakers really shine? Well, they're commonly used in commercial and industrial settings, as well as in certain areas of residential properties. Think about scenarios where you have appliances or equipment with significant inrush currents.

One prime example is powering lighting circuits in commercial buildings. Fluorescent and LED lighting can draw a higher-than-normal current when initially switched on. Using a Type C breaker helps avoid nuisance tripping caused by these surges, ensuring the lights stay on when needed. That translates to fewer headaches for building managers and occupants.

Another common application is for circuits powering small motors, such as those found in HVAC systems or small power tools. A Type C breaker is well-suited to handle the starting current of these motors without constantly interrupting the power supply. This helps keep equipment running smoothly and reduces downtime, which is especially important in commercial and industrial environments.

Even in a residential setting, Type C breakers can be useful. For example, if you have a home workshop with power tools like a table saw or drill press, a Type C breaker might be a better choice for those circuits. It can handle the initial surge of power when the tools are started, while still providing protection against sustained overloads and short circuits.

What Are Type A Circuit Breakers Used For At Matthew Bonds Blog

Potential Drawbacks

4. Knowing the Limits

While Type C breakers are great for certain applications, they're not a one-size-fits-all solution. There are situations where a different type of breaker might be more appropriate. It's all about understanding the trade-offs.

One potential downside is that Type C breakers are less sensitive to small overloads compared to Type B breakers. This means that a small, sustained overload might not trip the breaker as quickly, potentially leading to overheating and damage to the wiring. Therefore, it's crucial to ensure the circuit wiring is properly sized and rated for the expected load. Overloading circuits is never a good idea, no matter what type of breaker you use.

Another consideration is the type of appliances you're powering. For circuits that primarily power resistive loads, like incandescent lighting or electric heaters, a more sensitive breaker, like a Type B, might be a better choice. These appliances don't have significant inrush currents, so a less tolerant breaker can provide better protection against small overloads.

In short, it's essential to consider the specific requirements of your electrical system before choosing a circuit breaker. Don't just assume that a Type C breaker is the best option for everything. Take the time to assess the types of loads you'll be powering and choose the breaker that provides the best balance of protection and tolerance.

What Is The Difference Between A Type B And C Circuit Breaker » Wiring

Installation and Safety

5. Playing it Safe with Electricity

Working with electrical systems can be dangerous if you don't know what you're doing. That's why it's always best to consult with a qualified electrician when installing or replacing circuit breakers. Electricity is not something to mess around with. You may have heard that it only takes a fraction of an amp to kill you, and that is true.

A licensed electrician can assess your electrical needs, determine the correct type of circuit breaker for your application, and ensure that the installation is done safely and according to code. They can also check the condition of your wiring and make sure it's properly sized for the load. This can help prevent fires and other electrical hazards.

Even if you're comfortable with basic electrical work, it's always a good idea to double-check your work and ensure that everything is properly connected and grounded. Always turn off the power to the circuit before working on it, and use appropriate safety equipment, such as insulated gloves and eye protection. Electrical safety is paramount.

Beyond the immediate safety aspects of breaker installation, there are long-term benefits to consulting a qualified electrician. They can identify potential issues with your electrical system that you might not be aware of, and recommend solutions to improve its safety and efficiency. Investing in professional electrical services is an investment in the safety and well-being of your home and family or business and employees.

Different Types Of Molded Case Circuit Breakers Benbradfordmusic

FAQ

6. Your Burning Questions Answered

Alright, let's tackle some frequently asked questions about Type C circuit breakers:

Q: Can I replace a Type B breaker with a Type C breaker?

A: It depends. Generally, it's not recommended to simply swap a Type B for a Type C without understanding the specific loads on the circuit. If the circuit powers appliances with high inrush currents, a Type C might be okay. But if it's primarily resistive loads, sticking with a Type B is usually better. Best to consult with an electrician!

Q: How do I know if I need a Type C breaker?

A: The key indicators are frequent nuisance tripping on circuits powering motors, transformers, or certain types of lighting. If you're constantly resetting the breaker, a Type C might be the answer, but again, consult with a professional to be sure.

Q: Are Type C breakers more expensive?

A: Generally, Type C breakers are slightly more expensive than Type B breakers, but the price difference is usually negligible. The added cost is worth it if it prevents nuisance tripping and protects your equipment.

Q: Can a Type C breaker protect against short circuits?

A: Absolutely! Type C breakers provide protection against both overloads and short circuits, just like other types of circuit breakers. They are engineered to trip and disrupt the circuit and protect your devices, electronics, and wiring.
