Kirchhoff's Voltage Law

1. Understanding KVL's Core Principle

Kirchhoff's Voltage Law (KVL) is a cornerstone of circuit analysis. Think of it as the conservation of energy applied to electrical circuits. In its simplest form, KVL states that the algebraic sum of all the voltages around any closed loop in a circuit must equal zero. Put another way, what goes up must come down, voltage-wise! If you trace a path through a circuit, adding up all the voltage gains (like from a battery) and subtracting all the voltage drops (like across a resistor), you should end up back where you started, with a net change of zero. It's like taking a hike that loops back to your campsite — you haven't gained or lost any altitude overall.

This principle allows engineers and hobbyists alike to predict and analyze the behavior of electrical circuits. Without KVL, designing anything from a simple flashlight to a complex computer system would be significantly more difficult, bordering on impossible. Imagine trying to figure out how much current is flowing in a circuit without knowing how the voltages are related — pure chaos!

KVL is based on fundamental laws of physics, specifically the conservation of energy. The electric field is conservative, meaning that the work done in moving a charge around a closed loop is zero. This directly translates to the sum of voltage drops equaling the sum of voltage sources in a closed loop. It's the kind of elegant relationship that makes you appreciate the beauty of physics.

The elegance of KVL lies in its simplicity and wide applicability. For many practical applications, it's an invaluable tool. However, like all models, it has limitations, which we will delve into a bit later.

Kirchhoff's Voltage Law (KVL) YouTube

When KVL Takes a Vacation

2. The High-Frequency Hiccup

Now, here's where things get a little spicy. While KVL holds true in most DC and low-frequency AC circuits, it can start to wobble a bit at higher frequencies. The culprit? Parasitic elements, specifically stray inductance and capacitance. These are unintentional inductances and capacitances that exist in real-world components and connecting wires due to their physical geometry.

At high frequencies, these stray inductances and capacitances become significant. They can create voltage drops and phase shifts that are not accounted for in the simple KVL equation. Its like adding tiny, invisible components to the circuit that are busily messing with the voltage distribution. Think of it as unexpected guests showing up at your perfectly planned party and causing a little bit of a ruckus.

Imagine a simple loop with a resistor and a capacitor at a very high frequency. The parasitic inductance of the wires connecting the components can create an inductive voltage drop that wasn't there in the idealized circuit model. This voltage drop will change the voltage across the resistor and capacitor, and KVL will appear to be violated. In reality, KVL is still valid, but it has to be applied to the entire circuit, including the parasitic elements.

Therefore, at higher frequencies, the simple application of KVL needs adjustments. More sophisticated circuit models, which include these parasitic elements, must be used to get accurate results. This is a common challenge in RF (Radio Frequency) and microwave circuit design, where these effects are pronounced and can't be ignored.

Solving Circuits With Kirchhoff's Voltage Law CircuitBread

The Role of Lumped Element Model

3. KVL and the Lumped Element Model

KVL relies on the lumped element model. This model assumes that circuit elements are small compared to the wavelength of the signals traveling through them. In other words, the properties of the components (resistance, capacitance, inductance) are concentrated at a single point, and the connecting wires are considered to have negligible impedance. It's like pretending all the ingredients for a cake are perfectly mixed in a single bowl before baking.

When the size of the circuit components becomes comparable to the wavelength of the signal, the lumped element model breaks down. The voltage and current can vary significantly along the length of the wires, and KVL, as we traditionally know it, doesn't accurately reflect the circuit behavior. This is why KVL starts to fail at high frequencies, where the wavelengths become shorter.

To deal with this breakdown, engineers turn to distributed element models. These models consider the wires as transmission lines with distributed inductance and capacitance. They use concepts like impedance matching and standing wave patterns to analyze the circuit. It's like acknowledging that the cake batter isn't perfectly mixed and considering how it spreads out during baking.

In short, KVL is always true when applied correctly within the limitations of the lumped element model. Understanding these limitations is key to avoiding errors in circuit analysis and design, especially at high frequencies.

Ppt Lesson 4 Series Circuits And Kirchhoffs Voltage Law Powerpoint

Shielding, Grounding, and the Pursuit of KVL Accuracy

4. Practical Considerations for Accurate KVL Application

Even in situations where KVL should theoretically hold true, practical issues can sometimes make it seem like it's being violated. Noise, ground loops, and improper shielding can introduce unwanted voltages into the circuit, leading to inaccuracies. It's like trying to measure the height of a building during an earthquake — all the shaking makes it difficult to get a reliable reading.

Proper shielding and grounding techniques can help to minimize these effects. Shielding reduces the amount of electromagnetic interference that can couple into the circuit, while grounding provides a low-impedance path for unwanted currents to flow, preventing them from affecting the voltage measurements. Think of shielding as a raincoat for your circuit, protecting it from the elements.

Careful measurement practices are also important. Using high-quality test equipment, minimizing lead lengths, and avoiding ground loops can all help to improve the accuracy of voltage measurements and ensure that KVL holds true. It's like using a precise measuring tool and following the instructions carefully to get the correct dimensions.

So, while KVL is a fundamental law, achieving accurate results in real-world circuits requires attention to detail and a good understanding of potential sources of error. Just like a master chef carefully selects and prepares the ingredients for a perfect dish, engineers must carefully design and construct circuits to ensure KVL works as expected.

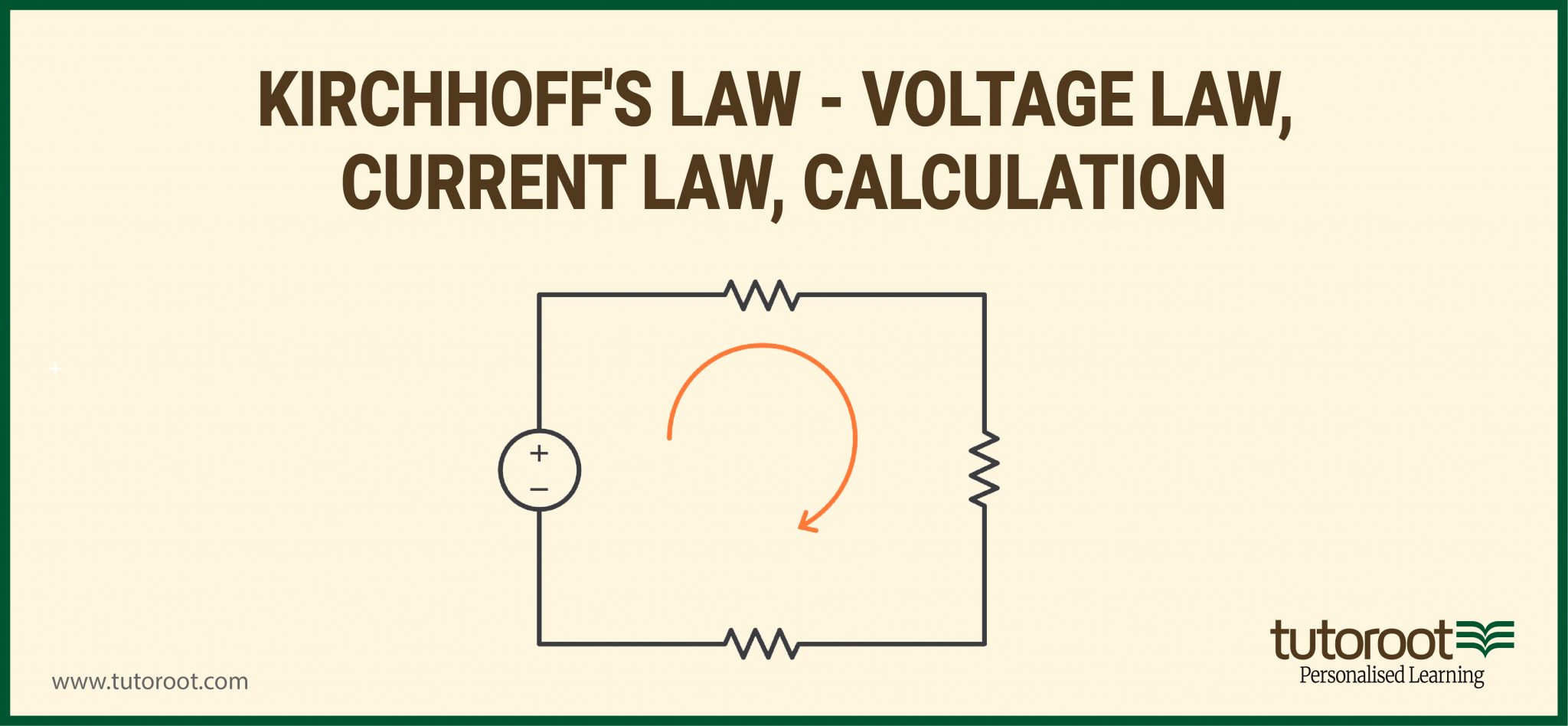

Kirchhoff's Law Voltage Law, Current Calculation Tutoroot

So, Is Kirchhoff's Voltage Law Always True? The Verdict.

5. The Nuances of KVL's Truth

The answer, like many things in engineering, is "it depends." In ideal, low-frequency circuits where the lumped element model is valid, KVL is absolutely true. It's a fundamental law based on the conservation of energy.

However, in high-frequency circuits or circuits with significant parasitic elements, the simple application of KVL may not give accurate results. In these cases, you need to account for the parasitic elements or use more advanced circuit analysis techniques based on distributed element models.

Therefore, it's more accurate to say that KVL is always true, provided it's applied correctly and within the appropriate context. Understanding the limitations of the lumped element model and the potential sources of error in real-world circuits is key to ensuring that KVL provides accurate and reliable results.

Ultimately, KVL remains a powerful and essential tool for circuit analysis. Just remember to use it wisely, and always be aware of its limitations. And don't blame Kirchhoff if your circuit misbehaves at GHz speeds, there are other factors involved!
